ArgoUML for Windows
Draw UML 1.4 class, use-case and sequence diagrams with ArgoUML, a free, open-source Java modeling tool with design critics and XMI model exchange.
- Operating system
- Windows; current Windows version support not established
- Architecture
- Not specified for the selected installer in the inspected release metadata
- Download package
- EXE setup installer (ArgoUML-0.35.1-setup.exe)
Java-based application. Publisher documentation describes historical Java platforms, not verified compatibility with current Java releases. No installation or execution performed.
Link checked · Download guidance
What is ArgoUML?

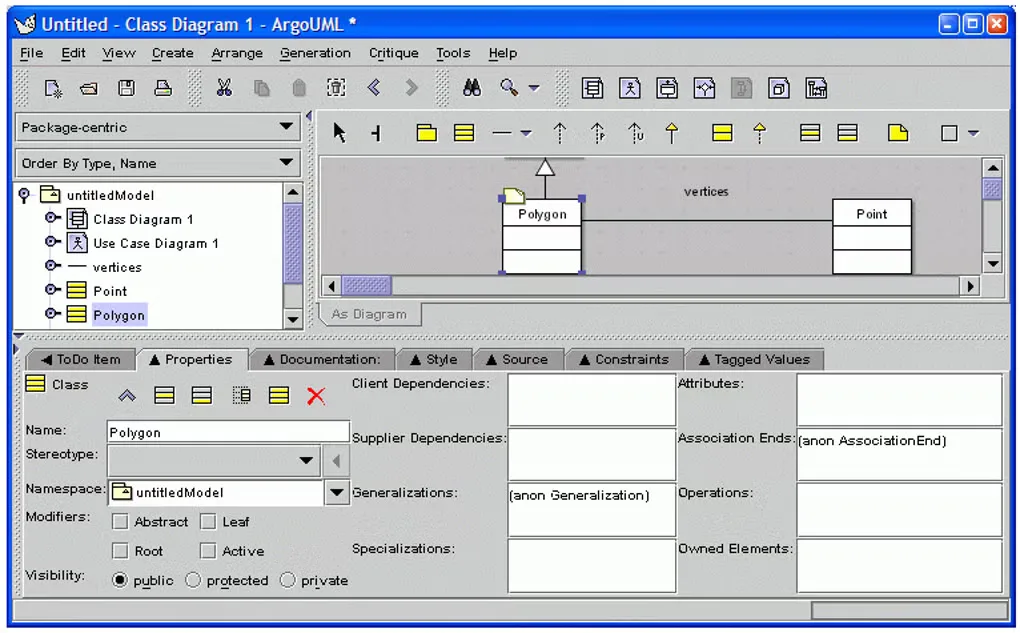

ArgoUML helps you describe a software design with UML diagrams rather than keeping its classes, relationships and interactions in separate notes. Its diagram editor sits alongside a project explorer and a details panel for the selected model element. Class, use-case, activity, statechart, collaboration, deployment and sequence diagrams are among the supported types.
Design critics analyze a model and put suggested improvements in a To-Do list instead of interrupting the drawing process. XMI import and export provide a model-exchange route, while PNG and SVG exports let you include diagrams in documentation. The publisher also documents Java code generation and reverse engineering.
This entry links to the publisher's archived 0.35.1 Windows setup executable. ArgoUML's documented modeling standard is UML 1.4, not UML 2.0. The publisher describes these releases as old; the presence of an installer is not evidence of compatibility with current Windows or Java releases. Choose it for a UML 1.4 workflow, not for a requirement that depends on UML 2 features.
What it offers
- Create UML 1.4 diagrams, including class, use-case, activity and sequence diagrams.
- Inspect a model through the project explorer and edit the selected element's properties in the details panel.
- Review design-critic suggestions and personal reminders in a To-Do list.
- Import and export XMI models, and export diagrams as PNG, SVG and other documented formats.
- Use the documented Java code-generation and reverse-engineering tools.
Good to know
- The documented modeling standard is UML 1.4; UML 2.0 is not supported by this listing's documented release.
- The download is an archived release. Compatibility with current Windows and Java versions has not been established here; no installation or runtime test was performed.
- XMI support is version-specific: the publisher documents importing UML 1.4 XMI 1.1 and 1.2, but writing only XMI 1.2.
Product images
Sources
References used for this listing. Retrieval dates do not indicate hands-on testing.
- ArgoUML - Download — Windows product page and screenshot gallery ↗Retrieved
- ArgoUML — archived publisher project overview ↗Retrieved
- ArgoUML Features — archived publisher documentation ↗Retrieved
- ArgoUML Resources Site — release archive context ↗Retrieved
- Publisher GitHub release metadata — 0.35.1 release ↗Retrieved
