CrystalDiskInfo for Windows
Check HDD and SSD health, temperature and S.M.A.R.T. information with CrystalDiskInfo, a free, open-source Windows storage-monitoring utility.
- Operating system
- Windows XP, Vista, 7, 8, 8.1, 10 and 11; Windows Server 2003–2025 as listed by the publisher
- Architecture
- x86, x64 and ARM64 (publisher-listed support)
- Download package
- Standard Edition ZIP archive
Extract into a folder; this is not an installer. NVMe requires Windows 10/Server 2016 or later. Server Core is unsupported. Current email notifications require .NET Framework 4.8 or later.
Link checked · Download guidance
What is CrystalDiskInfo?

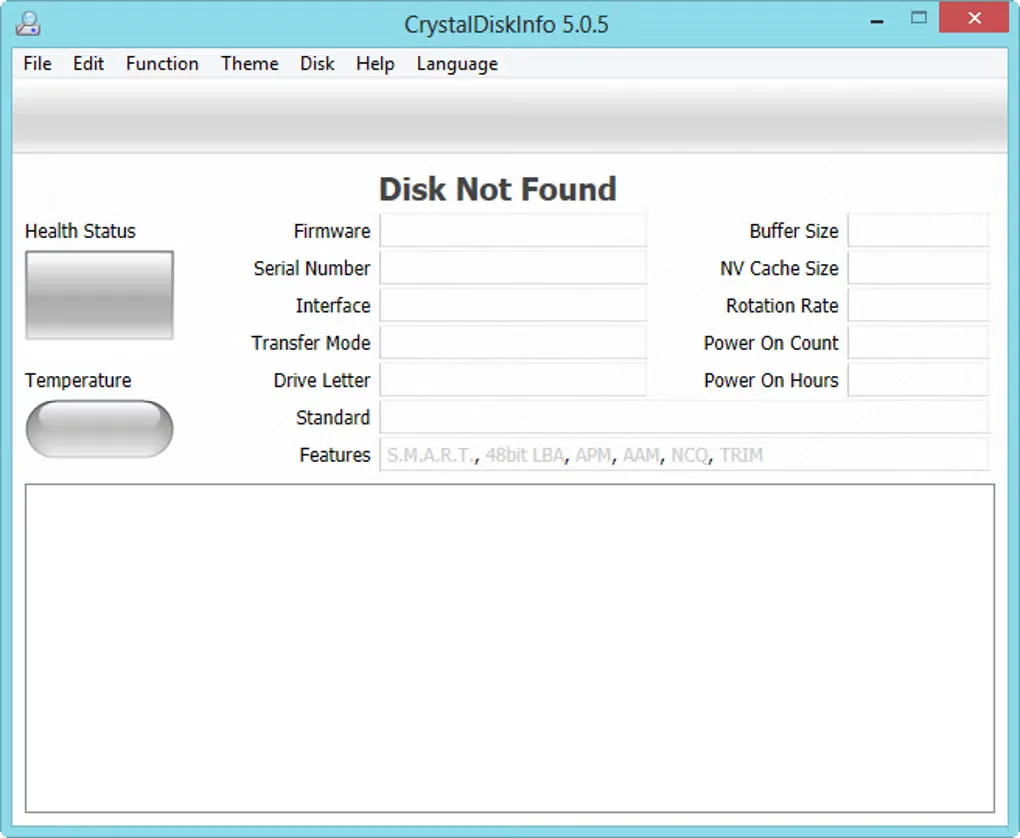

CrystalDiskInfo brings a drive's health status, temperature and hardware details into one Windows utility. Use it to inspect a supported HDD or SSD, read its S.M.A.R.T. attributes and check details such as firmware, power-on count and power-on hours. Graphs show changes in S.M.A.R.T. information, while resident monitoring and alarms help flag conditions that need attention.
Drive visibility depends on the controller and connection. USB and RAID support is partial, and external enclosures holding multiple drives are often unsupported. NVMe monitoring requires Windows 10 or Windows Server 2016 or later.
The download is the Standard Edition ZIP archive, not an installer. Extract it into a folder before use. The publisher lists x86, x64 and ARM64 support; its older Windows compatibility does not extend NVMe support to those older systems.
What it offers
- View drive health status, temperature, model and firmware information.
- Read S.M.A.R.T. information from supported HDDs and SSDs.
- Check power-on count and power-on hours reported for a drive.

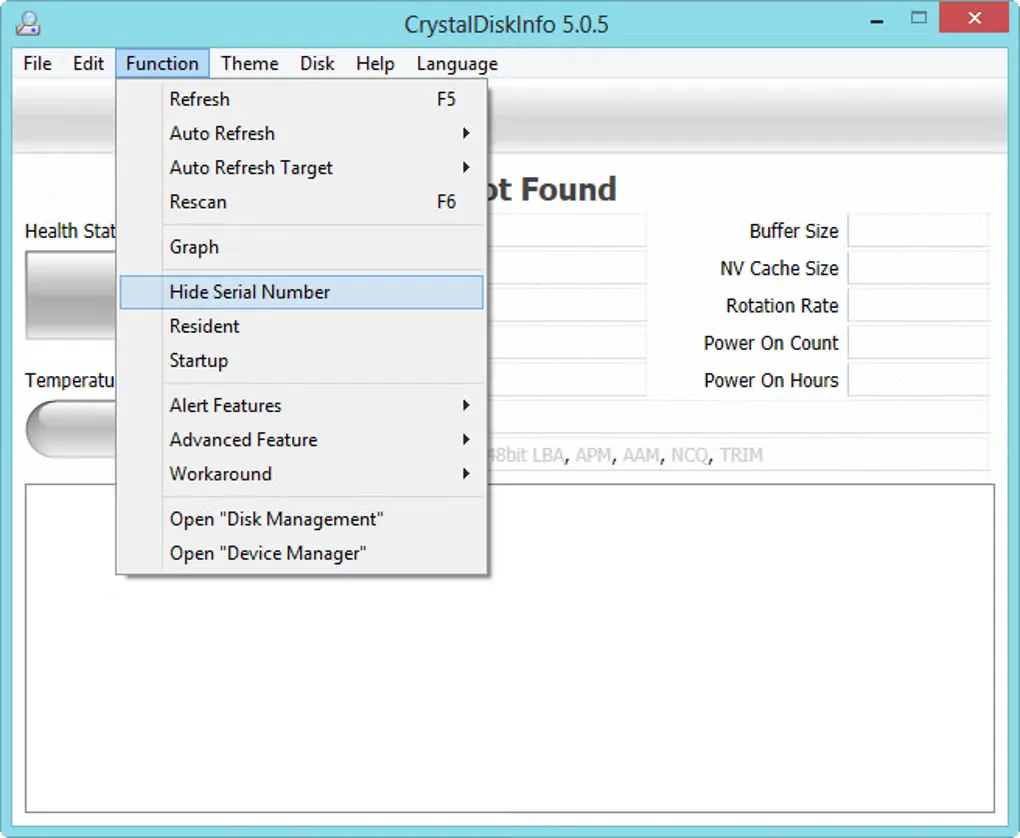

- Graph S.M.A.R.T. information and use resident monitoring with alarms.
Good to know
- USB and RAID support is partial; multi-drive external enclosures are often unsupported.
- NVMe monitoring requires Windows 10 or Windows Server 2016 or later.
- Windows Server Core is not supported.
Product images
Sources
References used for this listing. Retrieval dates do not indicate hands-on testing.
- CrystalDiskInfo — publisher overview and system requirements ↗Retrieved
- Crystal Dew World — official downloads ↗Retrieved
- CrystalDiskInfo — key features ↗Retrieved
- CrystalDiskInfo — MIT License ↗Retrieved
- CrystalDiskInfo — install and uninstall ↗Retrieved
- CrystalDiskInfo — general drive information ↗Retrieved
- CrystalDiskInfo — external drive support limitations ↗Retrieved
- CrystalDiskInfo - Download — Windows screenshot gallery ↗Retrieved
