Digital Logic Design for Windows
Design and simulate digital circuits with logic gates, flip-flops and reusable IC modules. Digital Logic Design also includes a digital oscilloscope for observing signals.
- Operating system
- Windows listing; Windows 10 and 11 compatibility not confirmed
- Architecture
- Not specified by the consulted sources; compatible Java required
- Download package
- Portable ZIP containing DLD.jar, according to the installation guide
Publisher guide specifies JDK 1.7 or above. No application execution or modern Windows compatibility test was performed. Softonic lists an older version for Windows 2003.
Link checked · Download guidance
What is Digital Logic Design?
Digital Logic Design is a circuit-design and simulation tool for students, teachers and electronics hobbyists. Build combinational or sequential circuits from gates and flip-flops, connect their pins with tracks, and observe the results through LEDs, seven-segment displays or oscilloscope probes. The publisher also documents generating custom ICs from Boolean expressions in sum-of-products form.
A completed circuit can become a reusable module for a larger design. Module instances are independent: editing the original module does not update copies already placed in a circuit. Those instances must be replaced manually when you want the revised design.

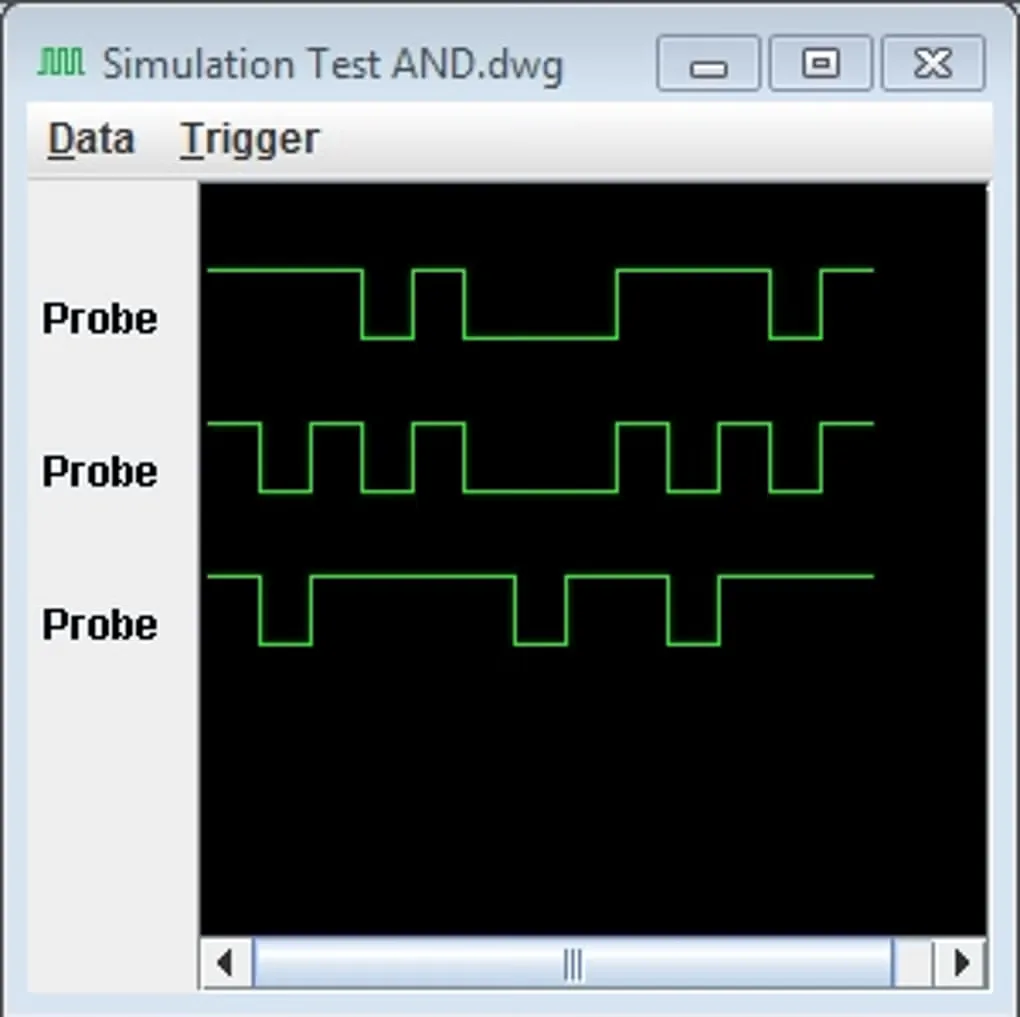

The publisher labels the software V2.0 and supplies a portable ZIP through SourceForge. Its installation guide describes extracting the archive and running DLD.jar with Java; it specifies JDK 1.7 or above. Softonic's older Windows listing still describes version 1 and Windows 2003, so it does not establish Windows 10 or 11 compatibility for the publisher's package. The screenshot shows the oscilloscope in that older listing, not a verified capture of V2.0.
What it offers
- Build combinational and sequential circuits using logic gates and flip-flops.
- Convert circuits into reusable IC modules for larger designs.
- Generate custom ICs from Boolean expressions in sum-of-products form.
- Observe circuit outputs with LEDs, seven-segment displays and a digital oscilloscope.
- Save oscilloscope signal data and configure recording triggers.
Good to know
- Requires Java: the publisher's guide specifies JDK 1.7 or above rather than a self-contained Windows executable.
- Changes to a module do not propagate to instances already used in a circuit; replace those instances manually.
- Windows 10 and 11 compatibility is not established by the consulted documentation; Softonic lists version 1 for Windows 2003.
Product images
Sources
References used for this listing. Retrieval dates do not indicate hands-on testing.
- Digital Circuit Design — publisher introduction and V2.0 link ↗Retrieved
- Digital Logic Design — publisher installation guide ↗Retrieved
- Digital Logic Design — user manual, Version 2.0, dated 29-05-2023 ↗Retrieved
- Digital Logic Design - Download — protected browser observation ↗Retrieved
- Digital Logic Design — SourceForge project file feed ↗Retrieved
