Utilities macOS
InVesalius for macOS
Reconstruct CT and MRI DICOM scans as 3D models with InVesalius for Mac, a free, open-source tool for segmentation, measurements and surface export.
- Operating system
- macOS; minimum supported version not confirmed from the publisher sources inspected
- Architecture
- Apple Silicon (ARM64)
- Download package
- DMG disk image
The publisher lists separate Apple Silicon and Intel Mac downloads. This entry links to Apple Silicon; no installation or runtime compatibility test was performed.
Link checked · Download guidance
What is InVesalius?
InVesalius turns sequences of CT or MRI DICOM images into 3D reconstructions. Its workflow combines axial, sagittal and coronal slice views with segmentation tools, so you can isolate structures before creating a surface. Tissue thresholds, watershed segmentation and brush-style editing provide different ways to refine a mask. Linear and angular measurements help examine the image data, while surface export supports formats including STL, PLY and OBJ.

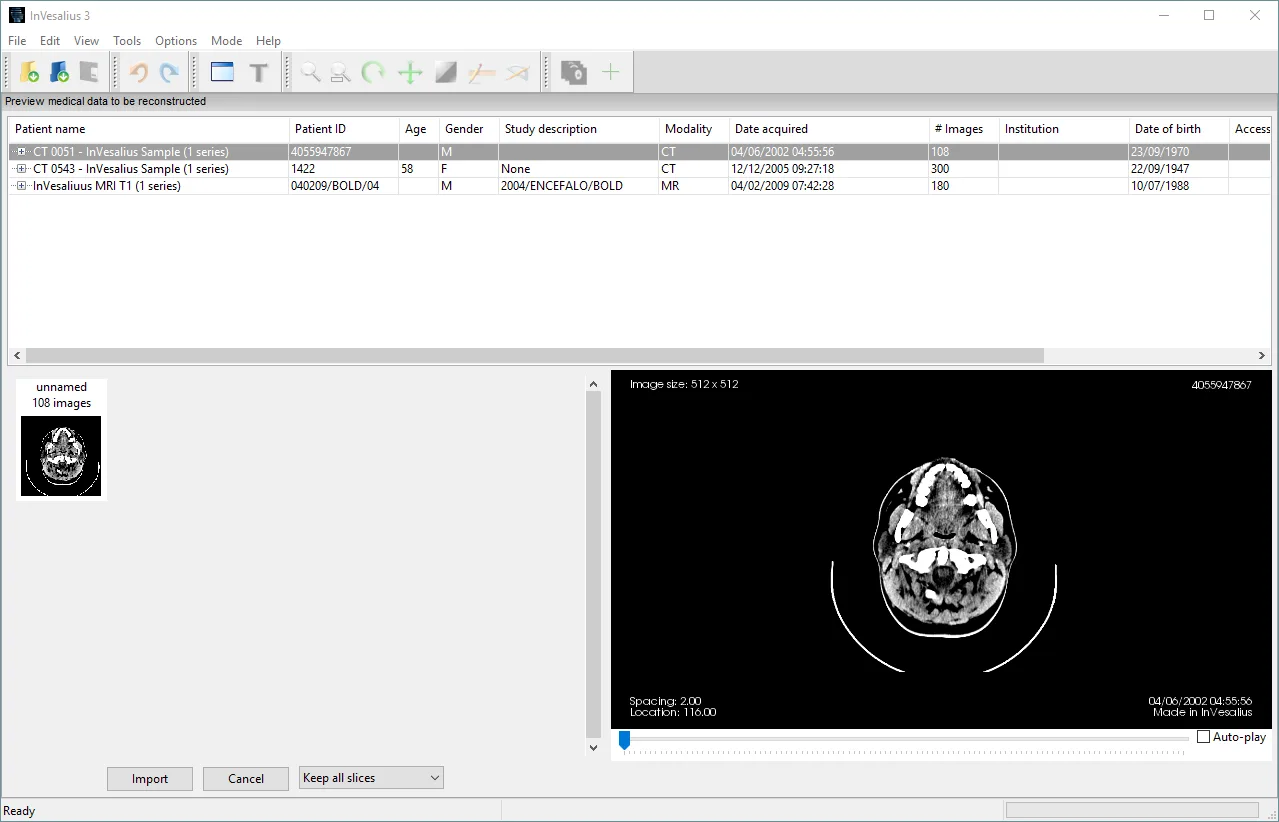

The linked download is version 3.1.99998 for Apple Silicon Macs, supplied as a DMG by the publisher. A separate Intel Mac package is listed on the same release page. The screenshots are illustrations from the publisher's desktop user guide, not captures of this Mac build.
Input quality matters: the user guide warns that image ordering and orientation need checking, and incorrect voxel spacing can produce incorrect measurements. Large image series may also require reducing slice resolution or skipping images when memory is insufficient. This listing does not establish clinical suitability or certify reconstruction accuracy.
What it offers
- Import CT and MRI DICOM image sequences for 3D reconstruction.

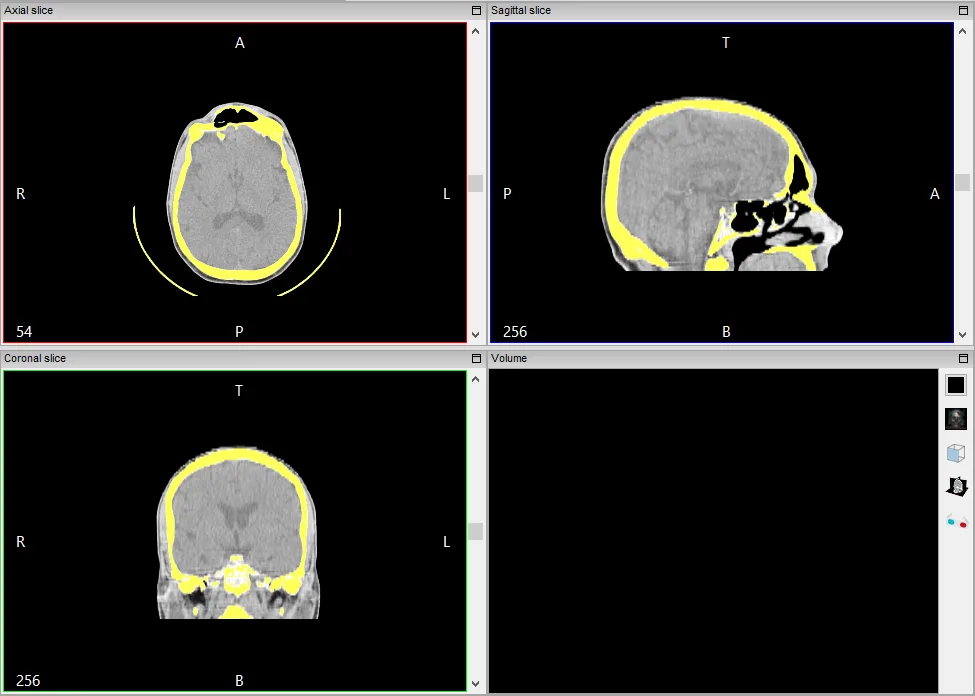

- Inspect axial, sagittal and coronal slice views alongside a 3D workspace.
- Segment structures with tissue thresholds, watershed tools and slice-based brush editing.
- Take linear and angular measurements and measure 3D surface volume.
- Create surfaces and export them as STL, PLY, OBJ and other supported formats.
Good to know
- Image ordering and orientation require checking; incorrect voxel spacing produces incorrect measurements.
- Large image series can exceed available memory, requiring reduced slice resolution or skipped images.
- This download is the Apple Silicon package; Intel Macs require the separate publisher package.
Product images
Sources
References used for this listing. Retrieval dates do not indicate hands-on testing.
- InVesalius for Mac - Download — passive browser observation ↗Retrieved
- InVesalius — publisher repository and README ↗Retrieved
- InVesalius 3.1.99998 — publisher release and Mac packages ↗Retrieved
- InVesalius user guide — image import and resource limitations ↗Retrieved
- InVesalius user guide — image orientation cautions ↗Retrieved
- InVesalius user guide — multiplanar reconstruction illustration ↗Retrieved
