Logicly for Windows
Build and simulate digital logic circuits with Logicly for Windows. Connect gates, inspect signal changes step by step and generate truth tables; a fully functional 30-day trial is available.
- Operating system
- Windows 7 or newer, according to the publisher
- Architecture
- Installer architecture not specified on the inspected publisher pages
- Download package
- EXE installer
Publisher minimums: Intel Core i3/i5/i7 or equivalent processor, 2 GB RAM and 100 MB available disk space. Requirements are publisher statements, not independently tested compatibility.
Link checked · Download guidance
What is Logicly?
Logicly is a digital logic circuit simulator for learning and teaching how gates work together. Drag components onto the editing surface, connect their inputs and outputs, and watch wires and lamps change with the simulated signals. Pause and advance the simulation step by step to trace how a change moves through a circuit.
The component set includes AND, OR, NOT, XOR, NAND, NOR and XNOR gates. For larger exercises, bundle a circuit into a reusable integrated circuit or share custom circuit libraries. Automatically generated truth tables can cover a selection, a custom integrated circuit or the whole file, with CSV export for further inspection.
This entry links to the publisher's Windows EXE for Logicly 1.14.2. The trial is fully functional for 30 days, not permanently free: continued use after evaluation requires a purchased product key. The publisher lists Windows 7 or newer, 2 GB RAM and 100 MB of free disk space as minimum requirements; the installer's processor architecture is not specified on the inspected pages.
What it offers
- Connect standard logic gates on a drag-and-drop editing surface with zoom, pan, undo and redo.
- Pause, reset or step through the simulation to inspect signal propagation.
- Generate truth tables for selected components, custom integrated circuits or an entire file, and export them as CSV.
- Bundle circuits into reusable integrated circuits and import or export circuit libraries.
- Choose IEC or ANSI/IEEE logic symbols and view changing signals through wire and lamp colors.
Good to know
- The fully functional trial lasts 30 days; after evaluation, continued use requires a purchased product key.

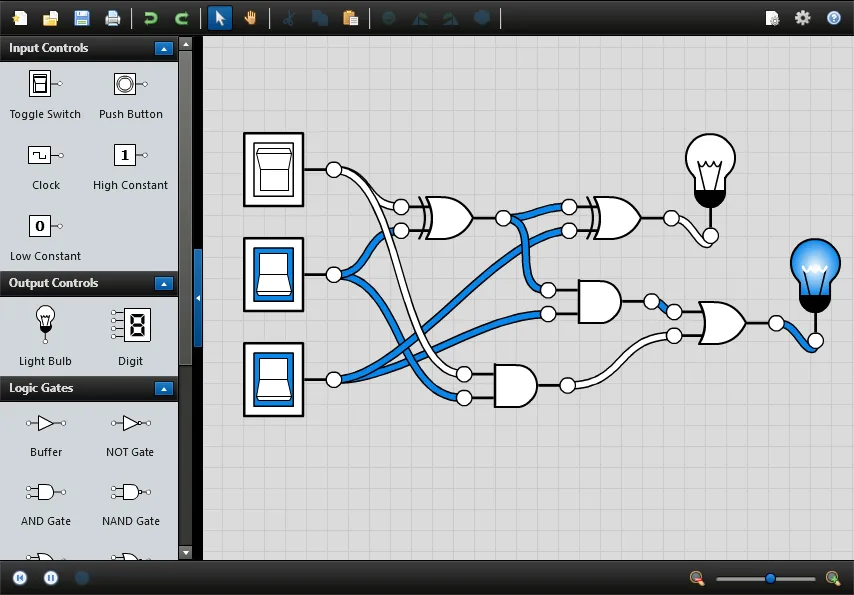

Product images
