Serial Port Monitor
Capture and inspect Windows COM-port traffic with Serial Port Monitor. Log serial exchanges, compare sessions and analyze Modbus data; a 14-day trial is available.
- Operating system
- Windows Vista, 7, 8, 10 and 11; Windows Server 2008, 2012, 2016, 2019, 2022 and 2025
- Architecture
- Publisher lists 32-bit, 64-bit and Windows on ARM support
- Download package
- EXE installer
System support is publisher-reported, not locally tested. The selected EXE's internal architecture was not inspected. Release notes say Windows XP and Server 2003 support ended in build 9.5.589.
Link checked · Download guidance
What is Serial Port Monitor?
Serial Port Monitor records data passing through Windows serial ports so developers and hardware technicians can inspect communication between an application and a connected device. It works with RS232, RS422 and RS485 communication and supports physical ports, virtual COM ports and USB-to-serial adapters. Multiple ports can share one monitoring session, making related exchanges easier to review together.
Captured traffic can be examined in table, line, dump, terminal and Modbus views. Save a session to reopen later, redirect captured data to a file, or use session comparison to locate differences between captures. The publisher also documents Modbus RTU and ASCII decoding and playback of captured data to a serial interface.

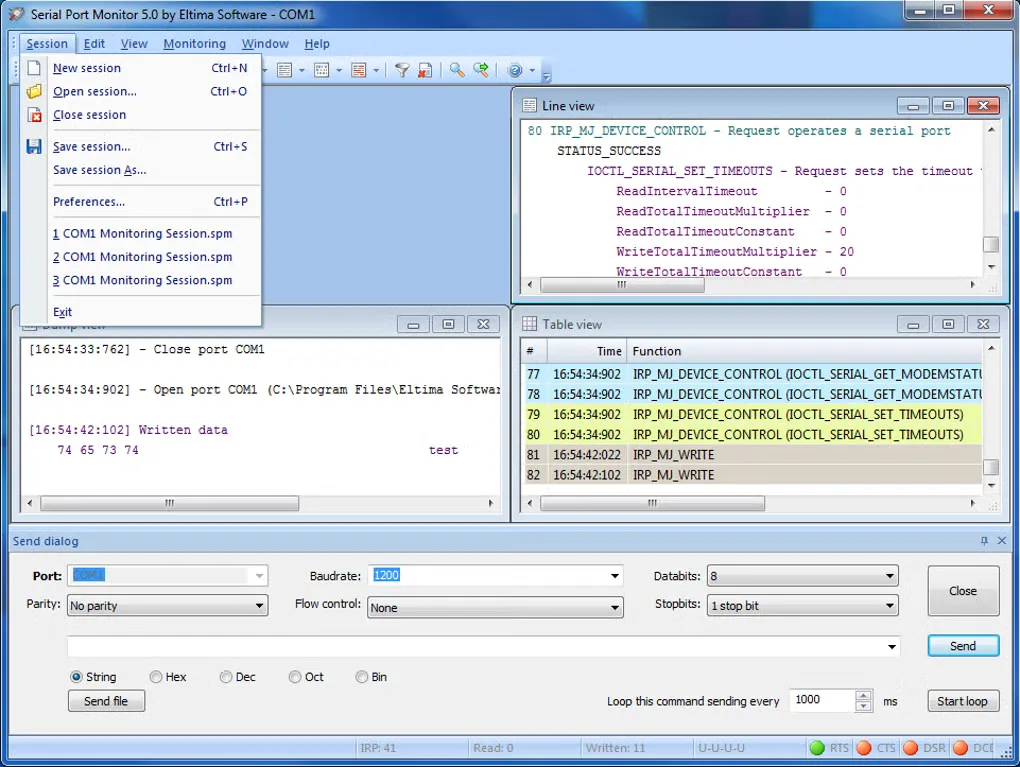

Check the edition before choosing it for an existing application: monitoring a port already opened by another program and the advanced Send dialog are listed as Professional/Company features. This is commercial software with a fully functional 14-day trial, not a permanently free utility. The gallery image is a historical Serial Port Monitor 5.0 interface from Softonic, not a screenshot of the current build.
What it offers
- Monitor several COM ports in one session, including physical ports, virtual ports and USB-to-serial adapters.
- Inspect captured traffic through table, line, dump, terminal and Modbus views.
- Save and reopen monitoring sessions, record data to files and compare sessions.
- Decode Modbus RTU and Modbus ASCII communication.
- Replay captured data to a serial port; advanced sending controls depend on the edition.
Good to know
- The fully functional trial lasts 14 days; continued use requires a paid license.
- Monitoring a port already opened by another application and the advanced Send dialog require Professional or Company edition.
- Publisher release notes list build 9.5.602, while the product overview still says 9.5.600. The HEAD check verifies the linked EXE endpoint, not the build inside that file.
